91208 Wood's Powr-Grip 4.5 inch Mounting Cup 1/4-20 x 3/4 Threaded Stud

SKU: 91208
$35.00
(0) No Reviews yet

Details

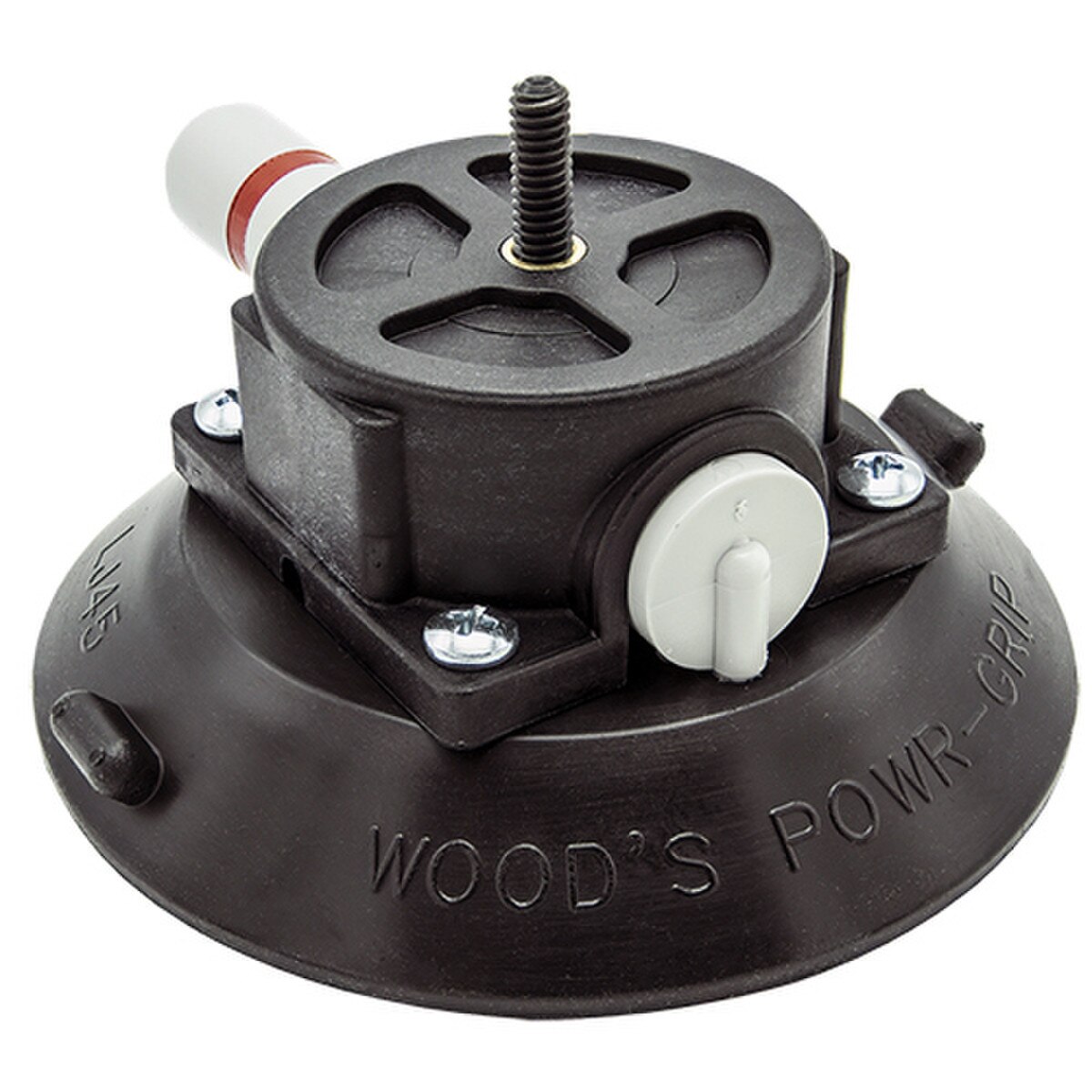

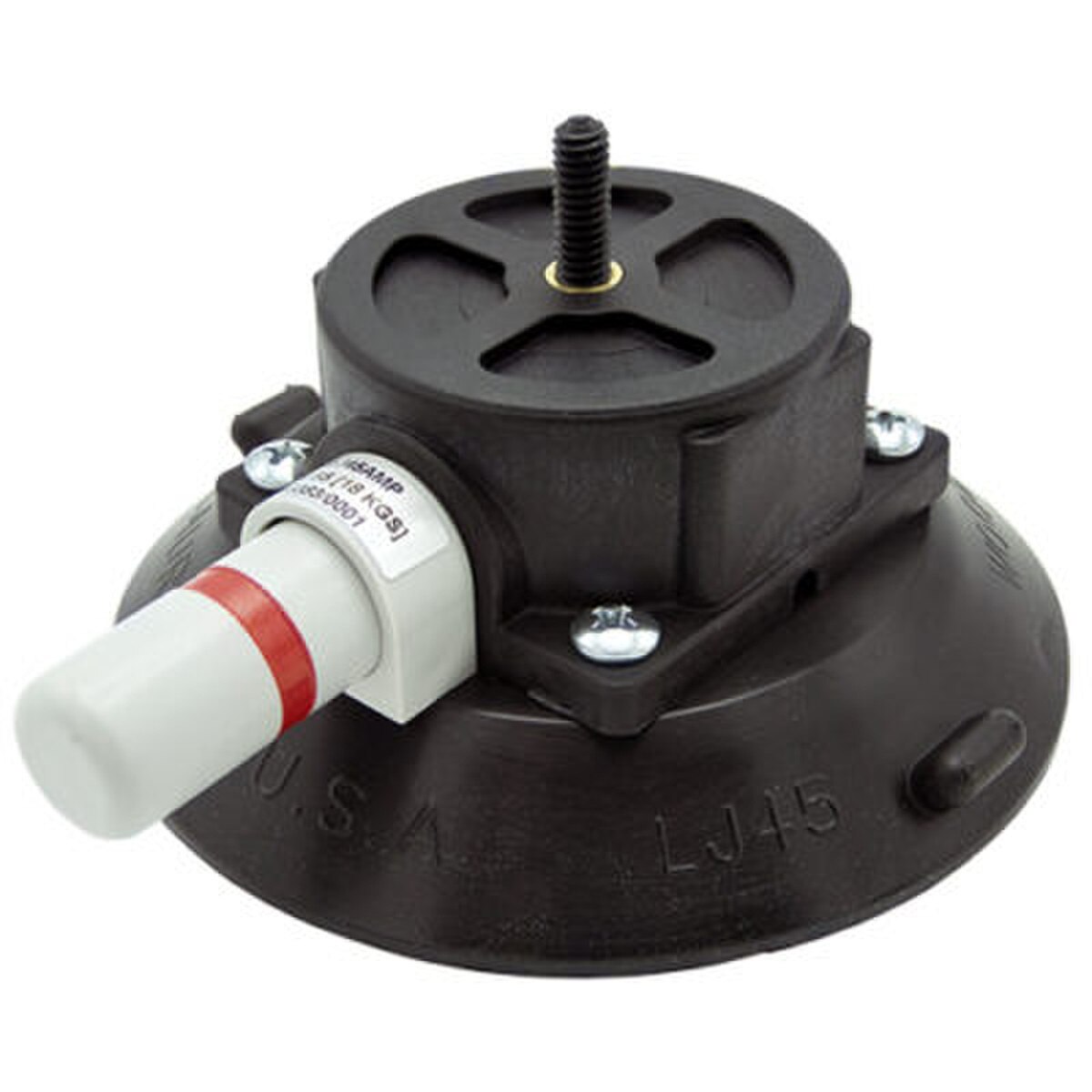

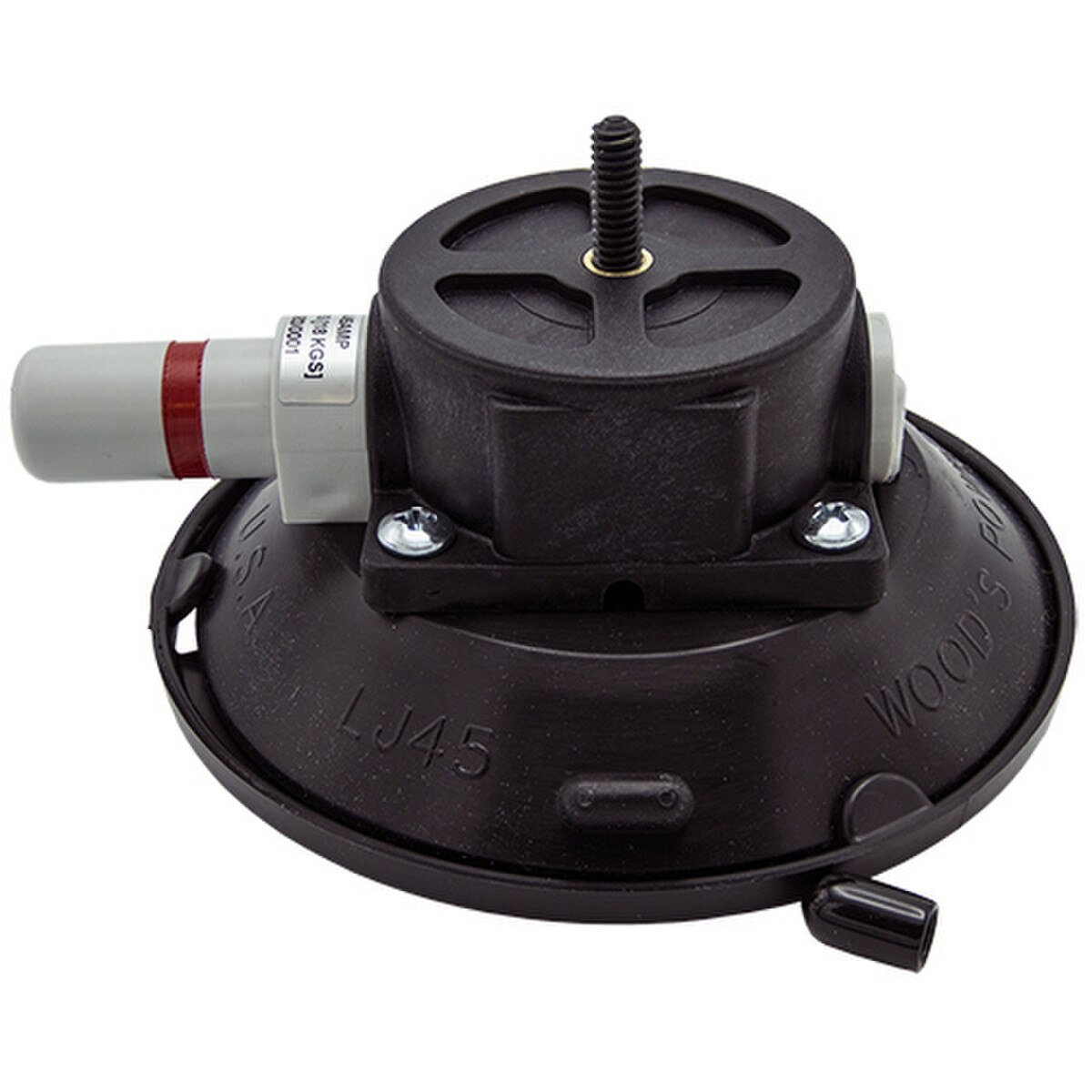

Powr-Grip LJ45AM mounting cups provide a reliable, temporary fastener on almost any smooth, nonporous surface, such as metal or glass. A 4.5" Concave vacuum pad. Capacity: 40lbs. Black polycarbonate with 1/4-20 x 3/4" stud. Designed to be used with the Loc-Line fixed mount (not included). Model: LJ45AMP1420T34L

Features:


  • Durable polycarbonate accessory mount with threaded stud for attaching equipment.
  • Compatible with Flexible Arms and other mounting accessories by RAM® Mounts.
  • Studs available in various lengths.
  • Provides a reliable, temporary vacuum mount, without drilling holes.
  • Rubber vacuum pad will not mark or damage most surfaces.
  • Attaches to flat or curved, smooth, nonporous surfaces.
  • Red-line indicator warns user of any vacuum loss.
  • Check valve allows repumping without loss of remaining vacuum.
  • Lift tabs on vacuum pad edges permit instant release.
  • Supplied with vacuum pad protector.

Specifications:


  • Vacuum Pad: Concave, 4-1/2" [115 mm] diameter (model LJ45)
  • Minimum Radius for Curved Mounting Surface: 12” [305 mm]
  • Height to Mounting Platform (does not include stud): 2-1/64" [51 mm] on flat surfaces;
    2-13/64" [56 mm] on surfaces with maximum curvature.
  • Load Capacity: 40 lbs [18 kg] per vacuum cup
