91152 Wood's Powr-Grip 3 inch Mounting Cup 1/4-20 x 5/8 Threaded Stud

SKU: 91152
$33.00
(0) No Reviews yet

Details

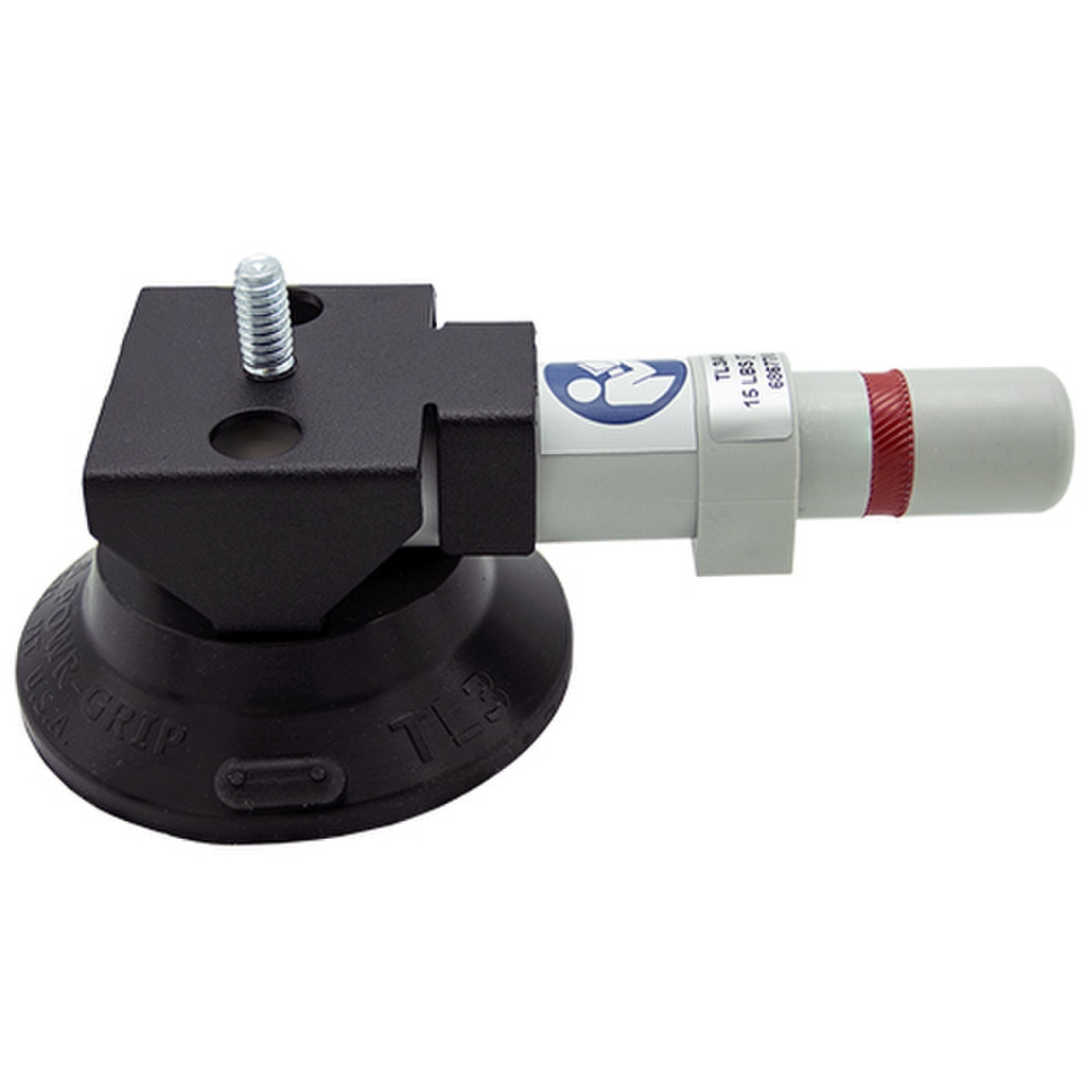

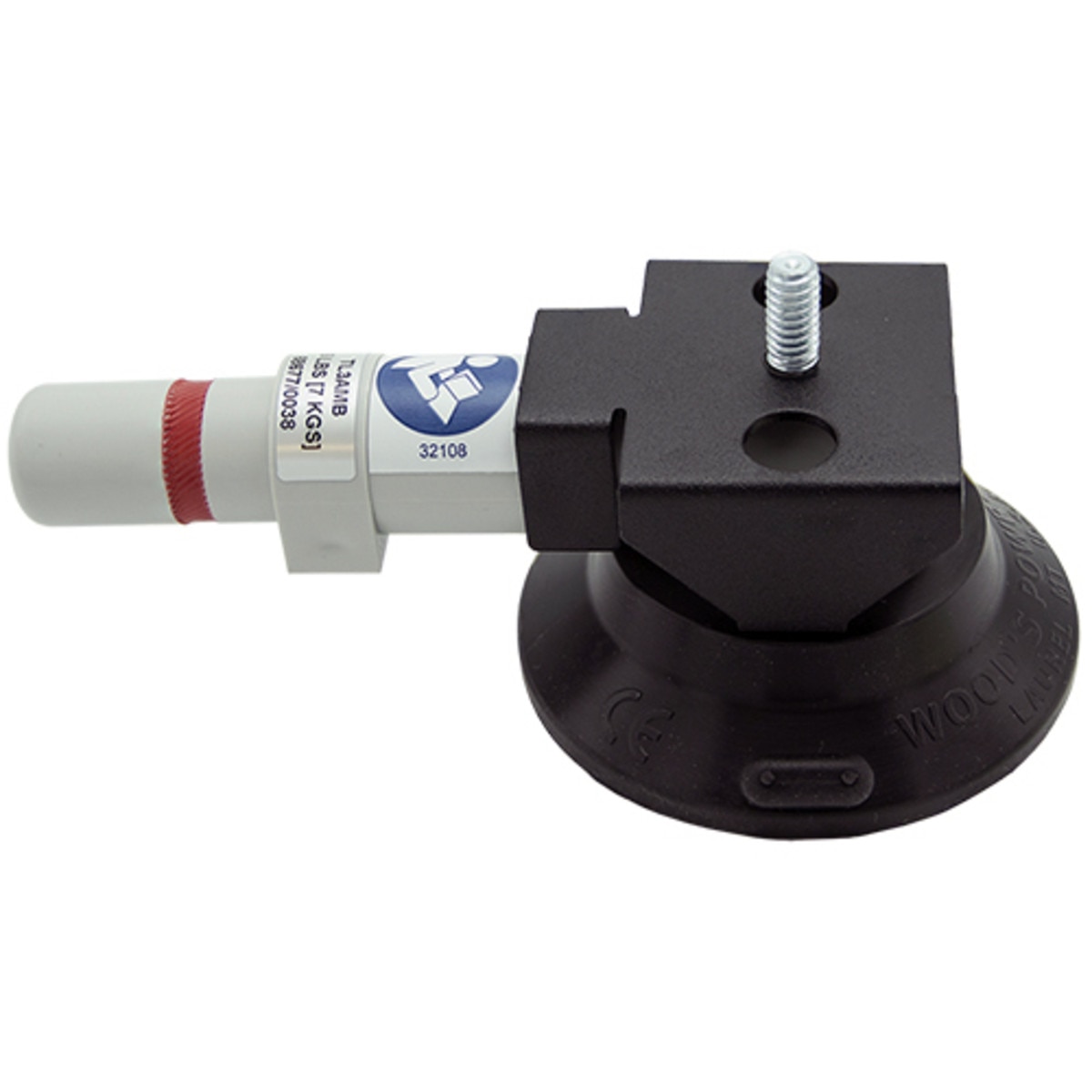

Wood's Powr-Grip TL3AM mounting cups provide a reliable, temporary fastener on almost any smooth, nonporous surface, such as metal or glass. A 3" Concave vacuum pad. Capacity: 15lbs. Black metal with 1/4-20 x 5/8" stud. Designed to be used with the Loc-Line fixed mount (not included). Model: TL3AMB1420T58L


Features:



  • Metal accessory mount with threaded stud for attaching equipment.
  • Studs available in various lengths.
  • Provides a reliable, temporary vacuum mount, without drilling holes.
  • Rubber vacuum pad will not mark or damage most surfaces.
  • Attaches to flat or curved, smooth, nonporous surfaces.
  • Red-line indicator warns user of any vacuum loss.
  • Check valve allows repumping without loss of remaining vacuum.
  • Lift tabs on vacuum pad edges permit instant release.

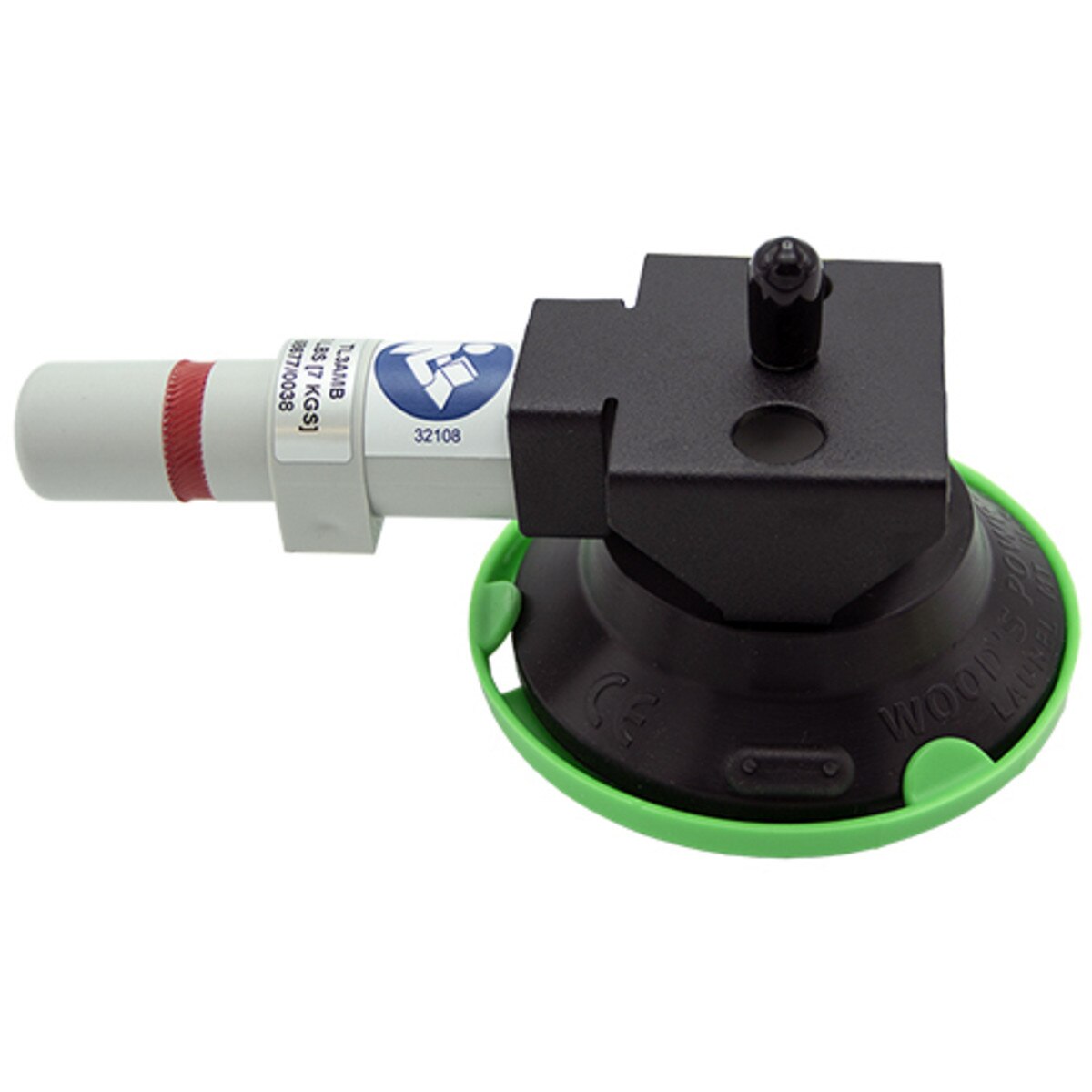

  • Supplied with vacuum pad protector.



Specifications:

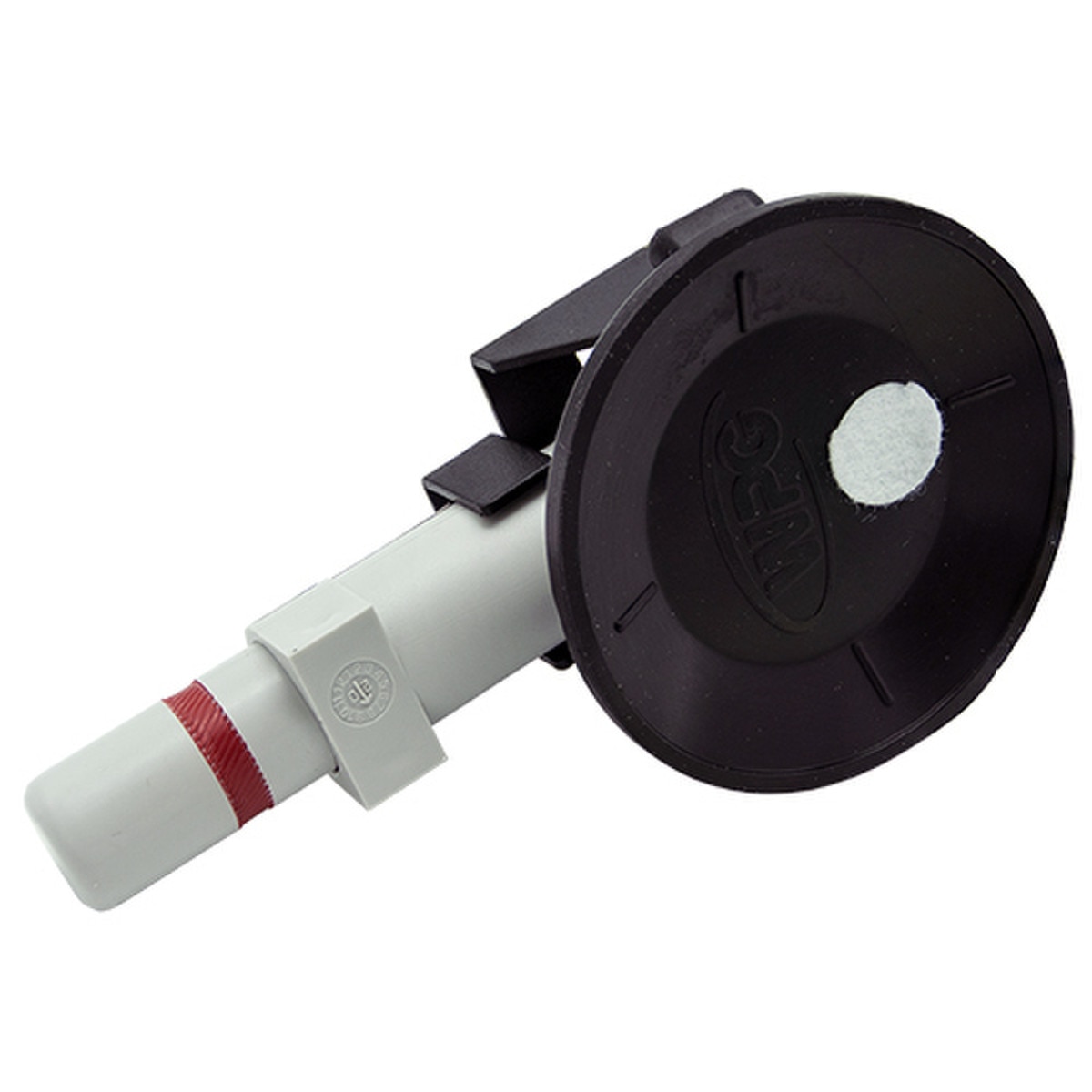

  • Vacuum Pad: Concave, 3” [77 mm] diameter (model TL3)
  • Minimum Radius for Curved Mounting Surface: 4" [102 mm]
  • Height to Mounting Platform (does not include stud): 1-27/64" [36 mm] on flat surfaces;
    1-11/16" [43 mm] on surfaces with maximum curvature.
  • Load Capacity: 15 lbs [7 kg] per vacuum cup
